MACHINE-DATASHEET
MACHINE-DATA
| Stock no. | 2026-1738 |
| Machine category | CNC Turning- and Milling Center |
| Make | HEYLIGENSTAEDT |
| Type | HEYNUMAT 5 UK / 1500 |
| Build year | 2007 |
| Control type | CNC |
| Location | Werksstandort, unter Strom |
| Origin | Germany |
| Delivery time | around mid-2025 |
| Quotation | ex factory site |
| Price | on request |
TECHNICAL DETAILS
| greates pass round over bed | 670 mm |
| swing diameter over bed slide | 490 mm |
| max. turning diameter | 490 mm |

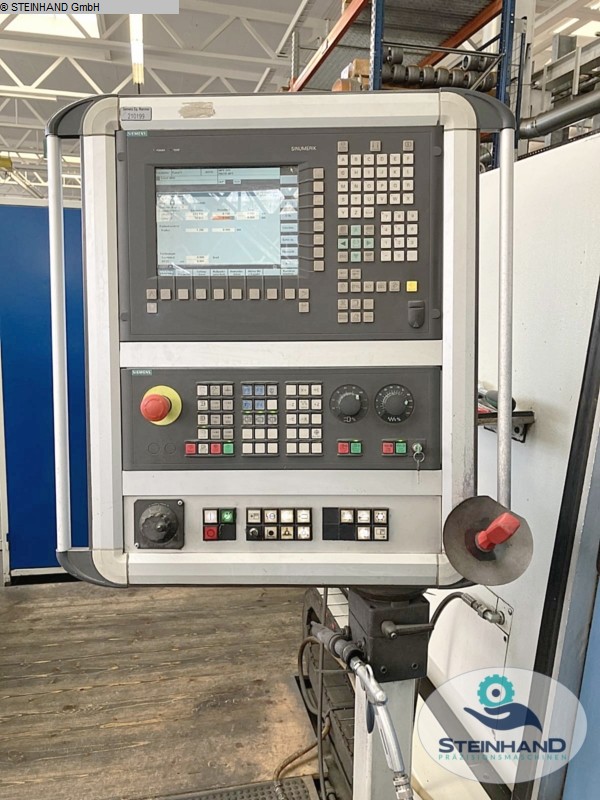

| control | SIEMENS - 840 D |
| main spindle bore | 115 mm |
| external spindle dia. in forward position | 160 mm |
ADDITIONAL INFORMATION

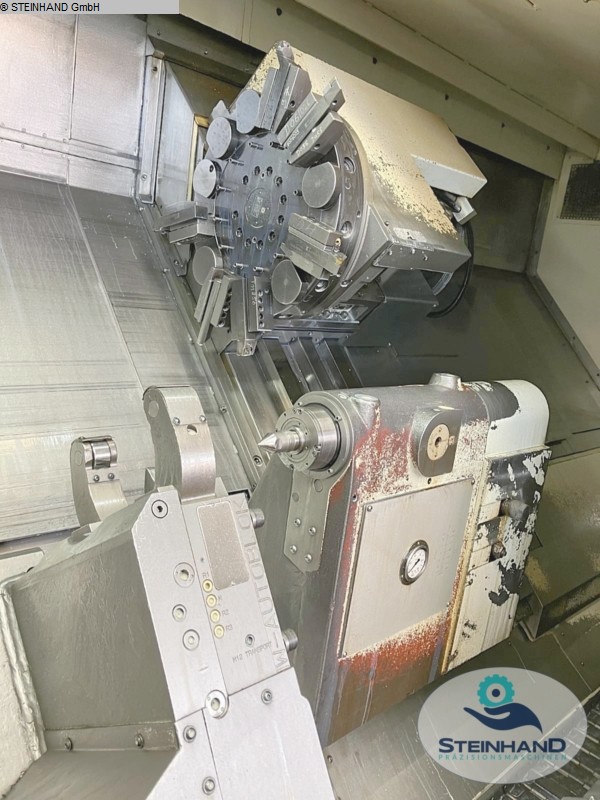

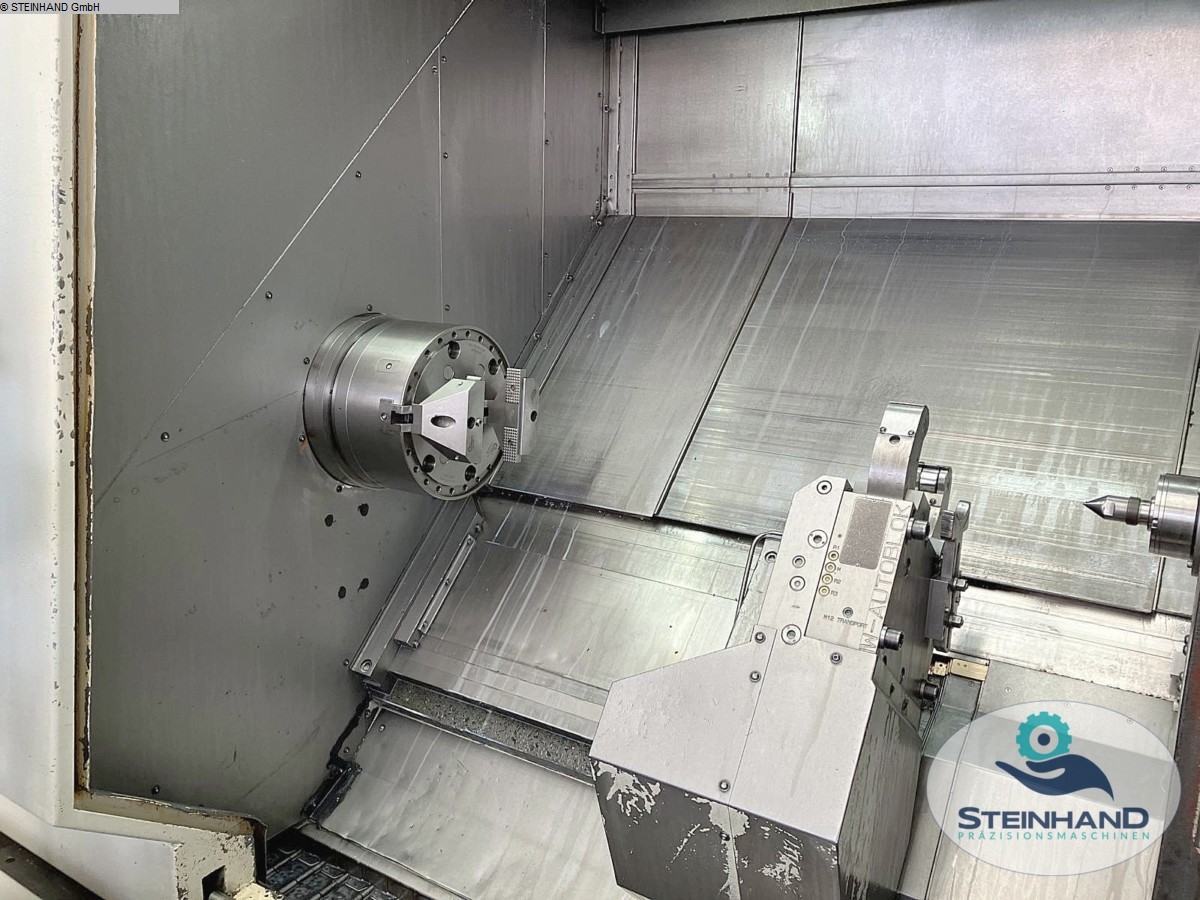

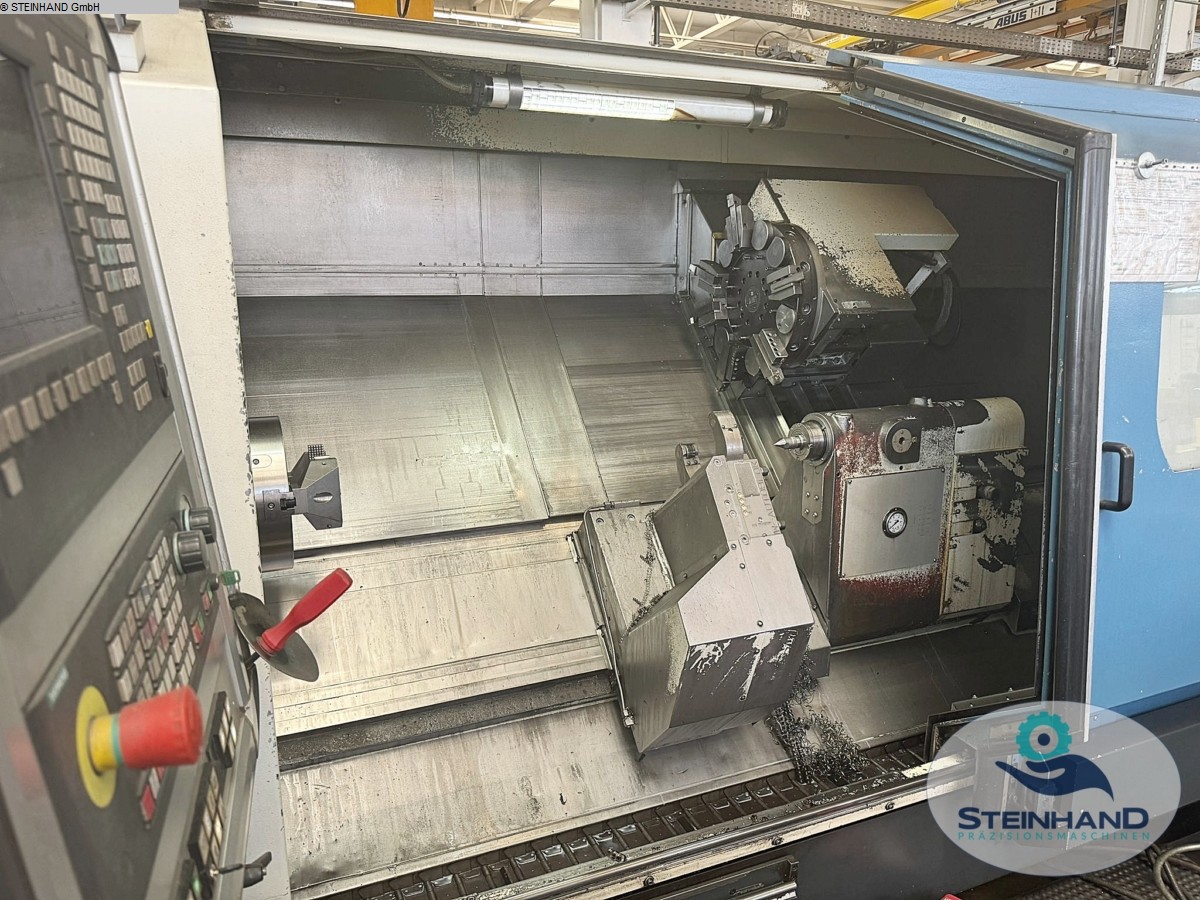

| CNC Turning- and Milling Center | HEYLIGENSTAEDT - HEYNUMAT 5 UK / 1500 equipped with a turret for driven tools as well as travelling lynette and tailstock. Additional equipment: - Centering points, - Jaw sets, - Clamping jaws, - 3 jaw chuck, The machine is in a well-maintained condition and can be inspected at any time under power. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: HEYNUMAT 5 U | HEYNUMAT 5-U | HEYNUMAT 5 U 1500 |
MACHINE PICTURE
|
 |
 |
 |
 |
 |
 |
 |
 |
